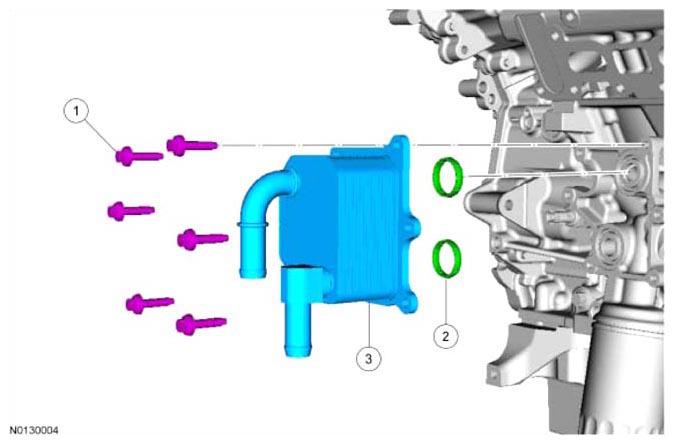

Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W503277 | Oil cooler bolt (6 required) | REFER to Installation | - | - |
| 2 | 6840 | Oil cooler gasket (2 required) | - | - | - |
| 3 | 6A642 | Oil cooler | - | - | - |
