Reductant Tank: Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All Vehicles

  1. Position the reductant tank.

    Outboard Frame Mounted Reductant Tank

    NOTE: On some chassis cab vehicles, the outboard frame mounted reductant tank can be mounted on the inboard side of the frame rail.
  2. Install the 2 reductant tank straps and 2 bolts.
    • Tighten to 40 Nm (30 lb-ft).

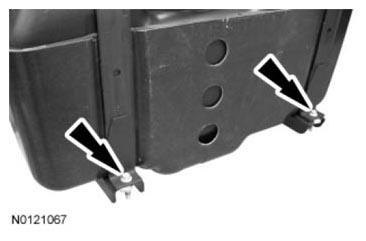

      Fig 1: Locating Reductant Tank Strap Bolts
      G07481968Courtesy of FORD MOTOR CO.

    All Vehicles

  3. NOTE: Inboard frame mounted reductant tank pressure line shown below, outboard similar.

    Connect the reductant pressure line heater electrical connector.

    Fig 2: Locating Reductant Pressure Line Heater Electrical Connector
    G07481967Courtesy of FORD MOTOR CO.
  4. NOTE: Inboard frame mounted reductant tank pressure line shown below, outboard similar.

    Connect the reductant pressure line to the reductant pump assembly.

    Fig 3: Locating Reductant Pressure Line Connector Tabs
    G07481966Courtesy of FORD MOTOR CO.

    Inboard Frame Mounted Reductant Tank

  5. Connect the 2 reductant tank filler hoses to the reductant tank.

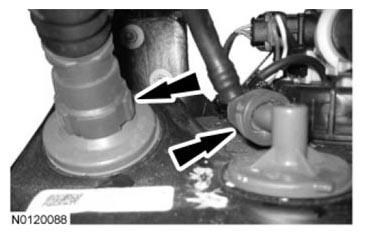

    Fig 4: Locating Reductant Tank Filler Hoses
    G07481963Courtesy of FORD MOTOR CO.
  6. Attach the reductant pressure line routing clip to the bracket.

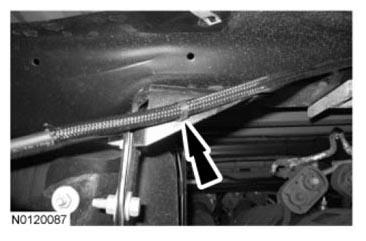

    Fig 5: Locating Reductant Pressure Line Routing Clip
    G07481962Courtesy of FORD MOTOR CO.
  7. Connect the reductant tank electrical connector.
    • Attach the connector pin-type retainer to the bracket.

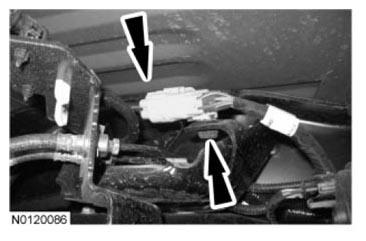

      Fig 6: Locating Reductant Tank Electrical Connector And Connector Pin-Type Retainer
      G07481961Courtesy of FORD MOTOR CO.
  8. Raise the reductant tank into the vehicle.
  9. Loosely install the 3 reductant tank bolts.
    Fig 7: Locating Reductant Tank Bolts
    G07481960Courtesy of FORD MOTOR CO.
  10. Install the reductant tank bolt.
    • Tighten to 20 Nm (177 lb-in).
      Fig 8: Locating Reductant Tank Bolt
      G07481959Courtesy of FORD MOTOR CO.
  11. Tighten the 3 reductant tank bolts.
    • Tighten to 20 Nm (177 lb-in).
      Fig 9: Locating Reductant Tank Bolts
      G07481960Courtesy of FORD MOTOR CO.
  12. If equipped, install the fuel tank shield. For additional information, refer to Fuel Tank and Filler Pipe - Exploded View in FUEL TANK AND LINES - GASOLINE AND DIESEL .

    All Vehicles

  13. NOTE: Inboard frame mounted reductant tank filler hose shown below, outboard similar.

    Install the 3 reductant tank filler hose bolts.

    Fig 10: Locating Reductant Tank Filler Hose Bolts
    G07481958Courtesy of FORD MOTOR CO.
  14. NOTE: Inboard frame mounted reductant tank filler hose shown below, outboard similar.

    Attach the reductant tank filler hose cap retaining strap to the reductant tank filler hose.

    Fig 11: Locating Reductant Tank Filler Hose Cap Retaining Strap
    G07481957Courtesy of FORD MOTOR CO.

    Outboard Frame Mounted Reductant Tank

  15. Connect the reductant tank electrical connector.
    • Attach the connector pin-type retainer to the frame.

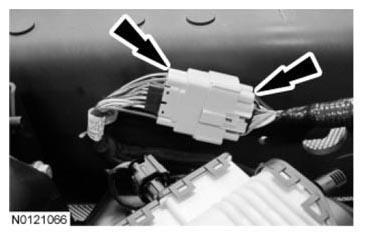

      Fig 12: Locating Reductant Tank Electrical Connector And Connector Pin-Type Retainer
      G07481965Courtesy of FORD MOTOR CO.
  16. Connect the 2 reductant tank filler hoses to the reductant tank.

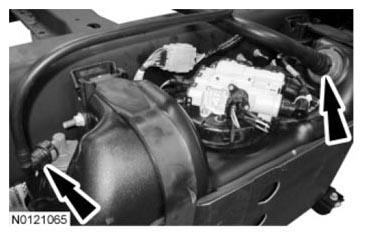

    Fig 13: Locating Reductant Tank Filler Hoses
    G07481964Courtesy of FORD MOTOR CO.

    All Vehicles

  17. NOTE: Always refill the reductant tank with new reductant to avoid reductant system contamination.

    Fill the reductant tank.
