Reductant Tank Draining

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All Vehicles

NOTE: Discard the drained reductant. Always refill the reductant tank with new reductant to avoid reductant system contamination.

Remove the reductant tank filler hose cap.
Inboard Frame Mounted Reductant Tank
NOTE: The reductant tank can also be drained through the reductant tank filler hose opening in the tank. The reductant tank may need to be lowered to gain access to the reductant tank filler hose opening.

Using a suitable drain hose, insert it into the reductant tank filler hose until it stops inside the reductant tank.

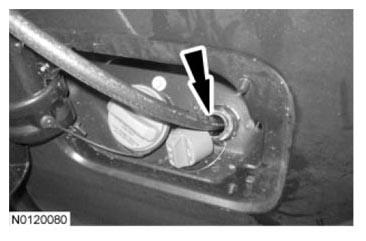

Fig 1: Locating Drain Hose
Courtesy of FORD MOTOR CO.

Outboard Frame Mounted Reductant Tank

NOTE: On some chassis cab vehicles, the outboard frame mounted reductant tank can be mounted on the inboard side of the frame rail.
NOTE: The outboard frame mounted reductant tank may need to be partially lowered to gain access to the reductant tank filler hose opening.

Disconnect the reductant tank filler hose from the reductant tank.

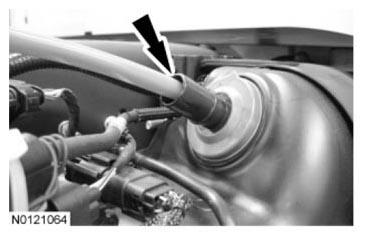

Fig 2: Locating Reductant Tank Filler Hose
Courtesy of FORD MOTOR CO.
Using a suitable drain hose, insert it into the reductant tank filler hose tank opening.

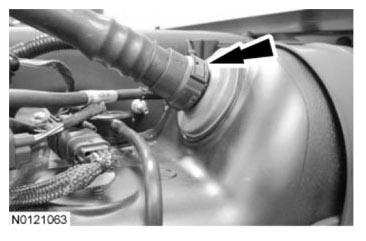

Fig 3: Locating Drain Hose Into Reductant Tank Filler Hose Tank Opening
Courtesy of FORD MOTOR CO.

All Vehicles
NOTE: Discard the drained reductant. Always refill the reductant tank with new reductant to avoid reductant system contamination.

Drain and discard the reductant out of the tank.
