Steering Column Shaft: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

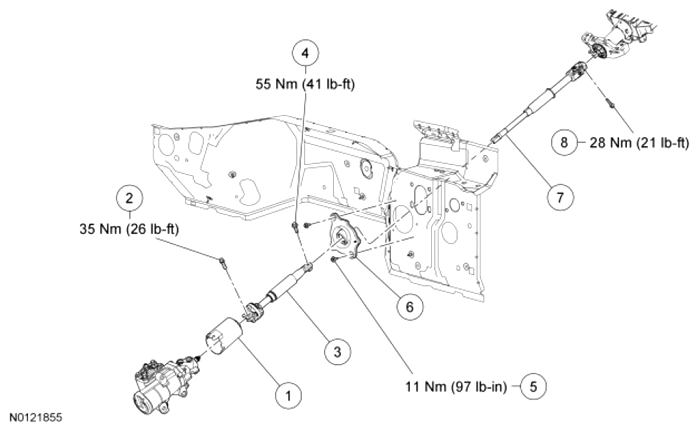

F-350/450 shown, F-450/550 similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3F450 | Steering gear shield |
| 2 | N803942 | Lower steering column shaft-to-steering gear bolt |
| 3 | 3C662 | Lower steering column shaft |
| 4 | W715479 | Upper steering column shaft-to-lower steering column shaft bolt |
| 5 | W705132 | Steering column shaft dash seal bolt (2 required) |
| 6 | 3D677 | Upper steering column shaft dash seal |
| 7 | 3E751 | Upper steering column shaft |
| 8 | W714409 | Upper steering column shaft-to-steering column bolt |
