Defective Insulation Stripping

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

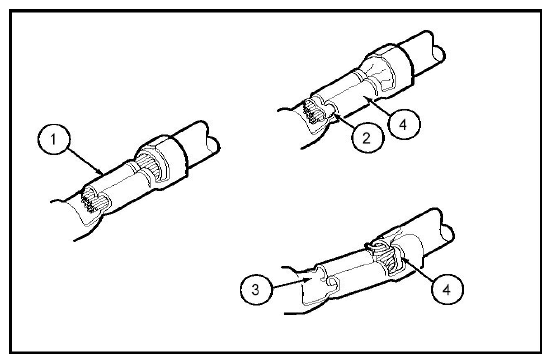

  1. Proper crimp
  2. Insulation not removed
  3. Wire strands missing
  4. Intermittent signals through pierced insulation
    Fig 1: Identifying Defective Insulation Stripping
    G08748257Courtesy of FORD MOTOR CO.
