Door Alignment

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

All adjustments

Remove the door latch striker.
Horizontal and vertical adjustment
Loosen the front door hinge-to-front door bolts.

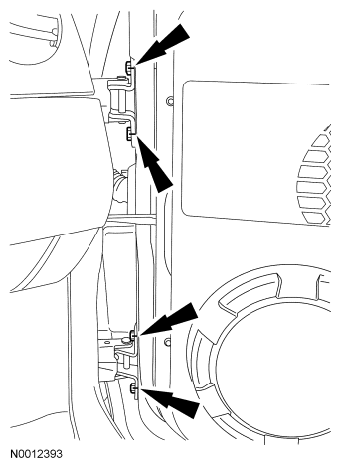

Fig 1: Locating Front Door Hinge-To-Front Door Bolts
Courtesy of FORD MOTOR CO.
Adjust the front door. For additional information, refer to BODY REPAIRS .
Tighten the front door hinge-to-front door bolts to 30 Nm (22 lb-ft).
Fore and aft adjustment
Loosen the door hinge-to-body bolts.
Adjust the front door. For additional information, refer to BODY REPAIRS .
Tighten the front door hinge-to-body bolts to 33 Nm (24 lb-ft).
All adjustments
Install the front door latch striker.
- Tighten to 25 Nm (18 lb-ft).
