Front Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the brake disc. For additional information, refer to BRAKE DISC .

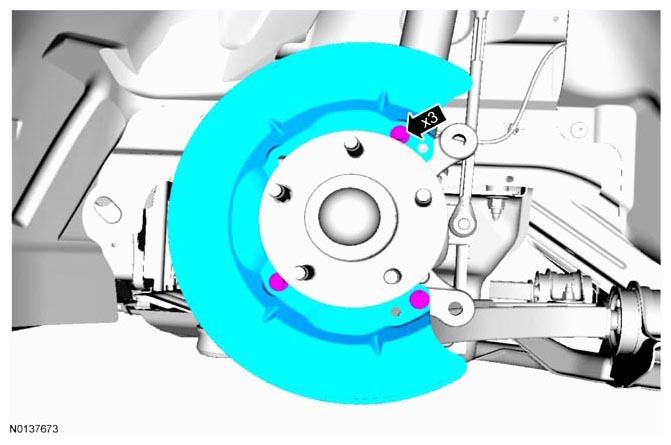

Vehicles with 2 or 4 piston calipers

NOTE: 2 piston caliper shown in illustration.
- To install, tighten to 20 Nm (177 lb-in).

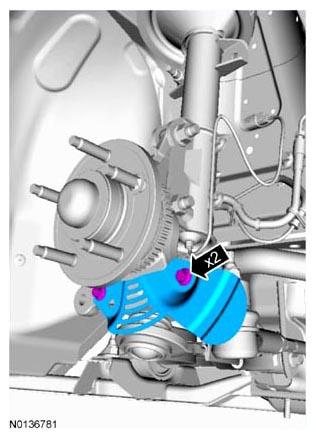

Vehicles with 6 piston calipers
- To install, tighten to 20 Nm (177 lb-in).
