Steering Column Multifunction Switch: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

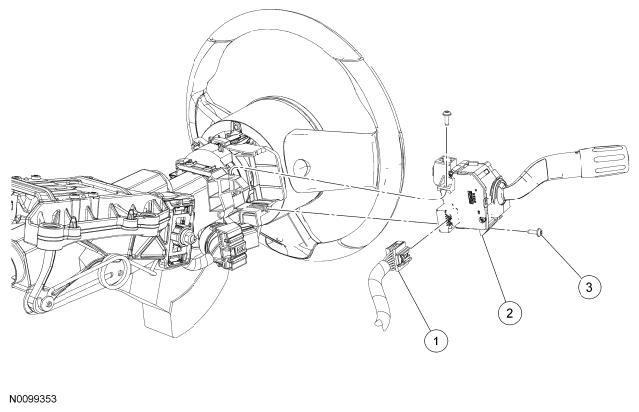

Fig 1: Identifying Steering Column Multifunction Switch Components
G06394578Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Multifunction switch electrical connector (part of 14401)
2 13K359 Multifunction switch
3 W506943 Multifunction switch screw (2 required)
