Component Location

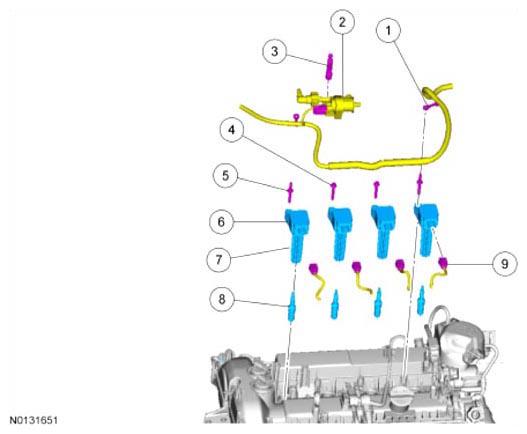

Fig 1: Identifying Engine Ignition Components Locations
G08030520Courtesy of FORD MOTOR CO.
Item Engineering Part Number Description Torque Material Name Notes
1 Part of 12C508  Wire harness retainer (2 required) - - -
2 9G271  EVAP canister purge valve - - -
3 6A957  Engine appearance cover mounting stud 5 Nm (44 lb-in) - -
4 W500301  Ignition coil-on-plug bolt (2 required) 8 Nm (71 lb-in) - -
5 W715638  Ignition coil-on-plug stud bolt (2 required) 8 Nm (71 lb-in) - -
6 12A366  Ignition coil-on-plug (4 required) - Silicone Brake Caliper Grease and Dielectric Compound -
7 12A402  (part of 12A366) Ignition coil-on-plug rubber boot assembly (4 required) - - -
8 12405  Spark plug (4 required) 12 Nm (106 lb-in) - -
9 Part of 12C508  Ignition coil-on-plug electrical connector (4 required) - - -
