General Procedure

  1. Inspect the fuel pump tappet for damage, especially in the indicated areas.

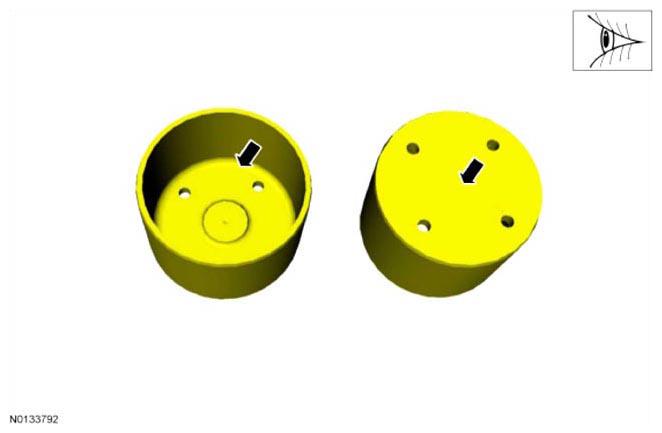

    Fig 1: Inspecting Fuel Pump Tappet For Damage
    G08030298Courtesy of FORD MOTOR CO.
  2. If any damage is evident, inspect the fuel pump and the fuel injection pump tappet drive lobe for damage. REFER to CAMSHAFT SURFACE INSPECTION . Install new components as necessary.
