Power Steering Fluid Reservoir: Notes

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

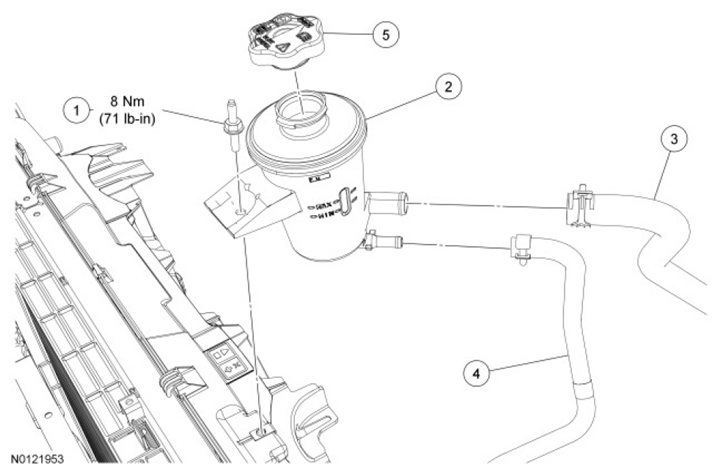

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503924	Power steering fluid reservoir stud bolt
2	3E764	Power steering fluid reservoir
3	3691	Power steering fluid reservoir-to-pump supply hose
4	3A713A	Power steering fluid cooler-to-power steering fluid reservoir hose
5	3A006	Power steering fluid reservoir cap (also part of 3E764)
