Side Air Bag Module: Notes

NOTE: Driver seat shown in the illustration, passenger similar.

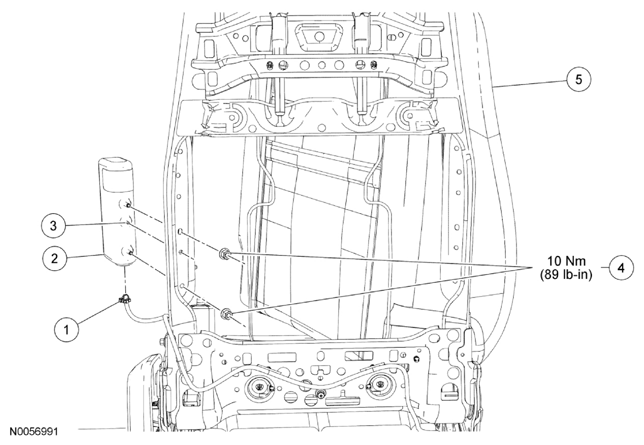

Fig 1: Side Seat Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Side air bag module electrical connector (part of 14K155)
2	611D10	Side air bag module
3	-	Side air bag module locator pin (part of 611D10)
4	N620480	Side air bag module nuts
5	-	Seat backrest trim cover and foam pad
