Seat Position Sensor
NOTE:

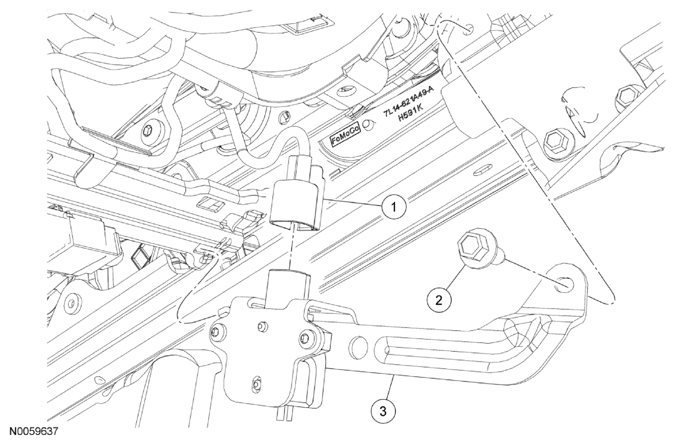

Power seat shown in the illustration, manual similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | - | Seat position sensor and bracket bolt (part of 14B416) |
| 3 | 14B416 | Seat position sensor and bracket |
NOTE:
The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Move the driver seat to the full forward and highest position.
- Change to Ignition Off. Wait 1 minute.
- Remove the seat position sensor and bracket bolt.
- Unhook the seat position sensor and bracket from the seat track cross brace.
- Disconnect the electrical connector and remove the seat position sensor and bracket.
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of this information.
