Safety Canopy Module: Notes
NOTE:

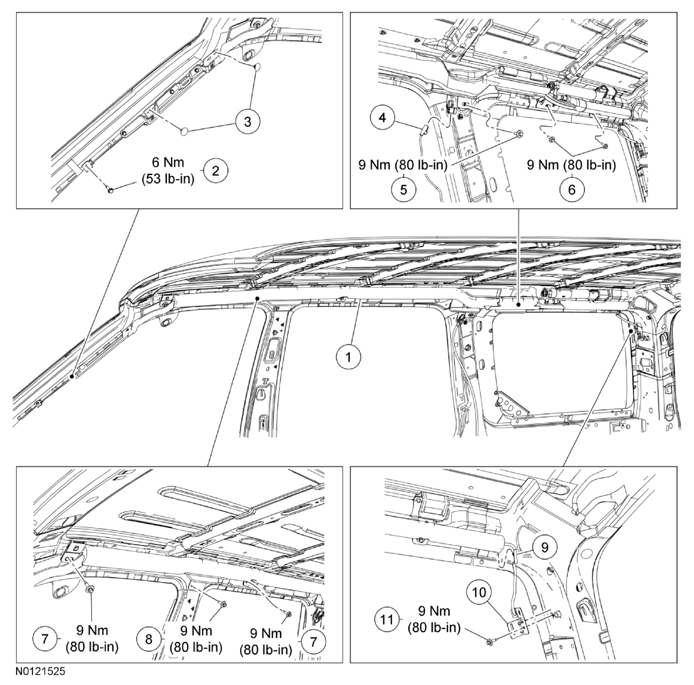

Expedition shown in the illustration, other models similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 RH/042D95 LH | Safety Canopy® module |
| 2 | - | Front tether cord bracket bolt (part of 042D94/95) |
| 3 | - | Front tether pin-type retainers (part of 042D94/95) |
| 4 | - | Safety Canopy® module electrical connector (part of 14A005) |
| 5 | W706681 | Safety Canopy® module C-pillar bolt |
| 6 | W706681 | Safety Canopy® module rear bolts |
| 7 | W706681 | Safety Canopy® module front bolts |
| 8 | W706681 | Safety Canopy® module B-pillar bracket bolt |
| 9 | - | Safety Canopy® module rear tether cord routing clip pin-type retainer (part of 042D94/95) |
| 10 | - | Safety Canopy® module rear tether cord anchor bracket (part of 042D94/95) |
| 11 | W706681 | Safety Canopy® module rear tether anchor bracket bolt |
