Front Impact Severity Sensor: Notes

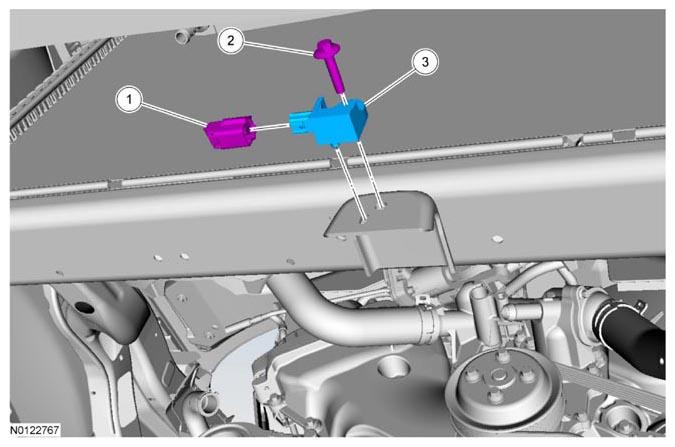

Fig 1: Identifying Front Impact Severity Sensor With Bolt And Electrical Connector
G07956655Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Front impact severity sensor electrical connector (part of 14290)
2 W711619 Front impact severity sensor bolt
3 14B345 Front impact severity sensor
