Driver Air Bag Module: Notes
NOTE:

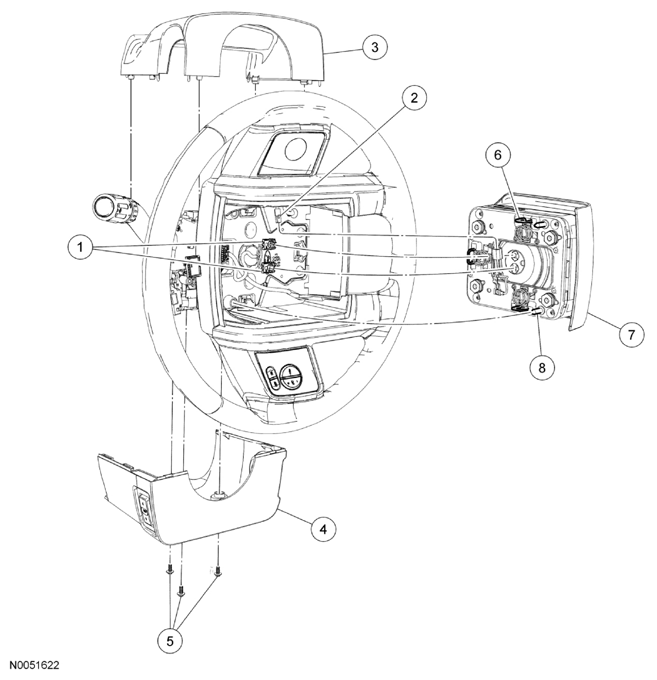

Expedition shown in the illustration, Navigator similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Driver air bag module electrical connectors (part of 14A664) |
| 2 | - | Horn switch electrical connector (part of 3600) |
| 3 | 3530 | Steering column upper shroud |
| 4 | 3K512 | Steering column lower shroud |
| 5 | W710485 | Steering column lower shroud screws (3 required) |
| 6 | - | Driver air bag module wire clip (part of 043B13) (3 required) |
| 7 | 043B13 | Driver air bag module |
| 8 | - | Driver air bag module locator pin (part of 043B13) (2 required) |
