Rivet Nut Replacement

WARNING: To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.

NOTE: If the Safety Canopy® module has deployed, the tether cord rivet nut must be inspected and replaced if damaged before installing a new Safety Canopy®.

NOTE: The air bag warning lamp illuminates when the Restraints Control Module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a Supplemental Restraint System (SRS) fault.

NOTE: A typical rivet nut replacement is shown that is similar for all vehicles.

NOTE: LH drive driver side shown in the illustration, all others similar.

Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
Remove the A-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the bolt and bracket for the tether cord from the A-pillar.

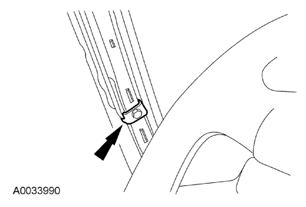

Fig 1: Locating Bracket Bolt
Courtesy of FORD MOTOR CO.
Position and secure the side air curtain tether cord and bracket assembly out of the way.
Using the appropriate service tool, sand the rivet nut shoulder until the shoulder surface is removed.

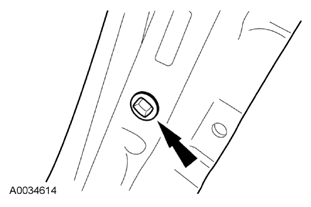

Fig 2: Locating Rivet Nut
Courtesy of FORD MOTOR CO.
Punch the remaining portion of the rivet nut through the rivet nut hole.

NOTE: Use only Ford Motor Company factory-authorized replacement parts for rivet nut repair procedure.

Obtain the correct square shank rivet nut for the vehicle application from the Ford Catalog Advantage™ or equivalent, and insert it into the rivet nut hole.
Using a suitable rivet nut installing tool, install the rivet nut. For additional information, refer to the tool manufacturer's operating instructions.
Position the A-pillar tether cord. Install the bolt. See the appropriate component REMOVAL AND INSTALLATION procedure or SPECIFICATIONS for the correct torque specification.

NOTE: The tether cord must be positioned correctly in place before installing the A-pillar trim panel.

Install the A-pillar trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
