OEM Ground Distribution: Grounds: G302

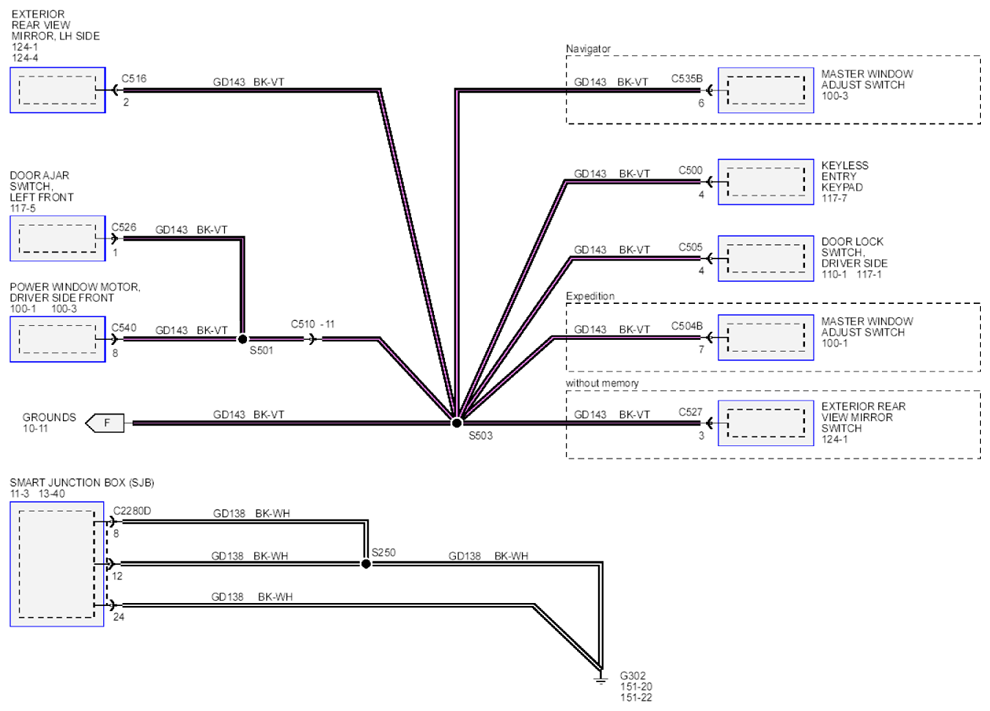

Fig 1: Grounds Circuit Diagram (G302)

G07900405

Courtesy of FORD MOTOR CO.
