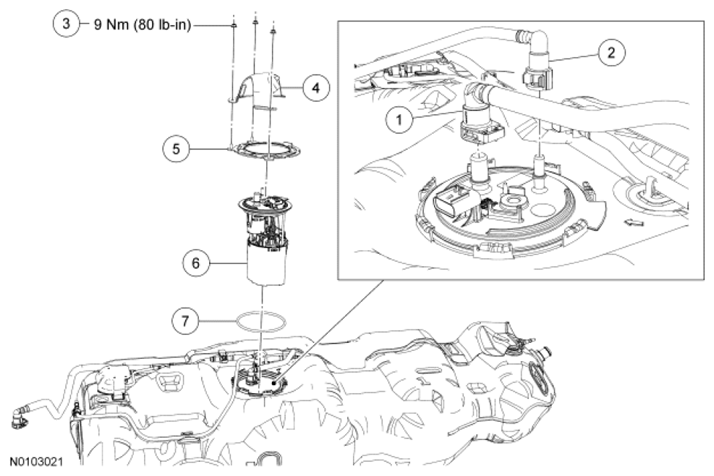

127L (33.5 Gal) Fuel Tank: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel Tank Pressure (FTP) sensor and vapor tube assembly-to-Fuel Pump (FP) module quick connect coupling (part of 9C015) |
| 2 | - | Fuel supply tube-to-FP module quick connect coupling (part of 9J337) |
| 3 | - | FP module cover nut (3 required) |
| 4 | 9B007 | FP module cover |
| 5 | 9C385 | FP module locking ring |
| 6 | 9H307 | FP pump module |
| 7 | 9417 | FP module O-ring seal |
