Block Heater: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada); or equivalent	WSS-M97B44-D

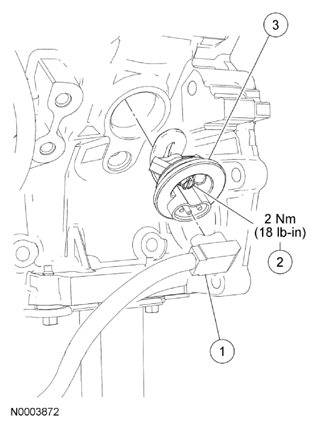

Fig 1: Identifying Block Heater, Electrical Connector And Retaining Screw

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A199	Block heater electrical connector
2	-	Block heater retaining screw (part of 6A051)
3	6A051	Block heater
