Gearshift Cables: Removal
- Disconnect the gearshift cables from the transaxle gearshift control assembly.
- Pull the spring clip out of the groove, lift upward and rotate the clip 90 degrees.
- Disconnect the gearshift cables from the transaxle bracket.
- Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE article.
- Remove the Restraints Control Module (RCM). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.

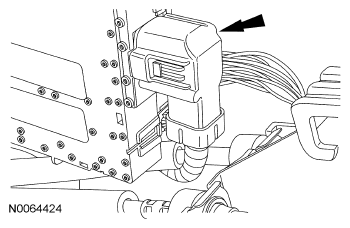

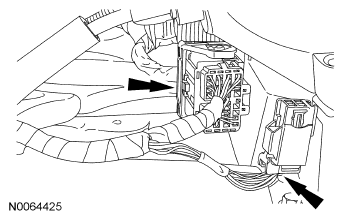

- Disconnect the Smart Junction Box (SJB) electrical connector and the 2 harness electrical connectors.
- Disconnect the gearshift cables from the gearshift lever assembly.
- Remove the 2 gearshift cable grommet nuts.
- Remove the gearshift cables.

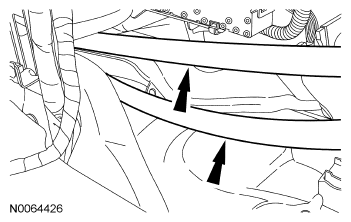

- Pull the gearshift cables into the vehicle. Using an assistant, carefully lift the LH floor duct, pull the cables under the duct and remove from the vehicle.
NOTE:
Carefully disconnect the spring clip from the cable end. It can become unfastened from the cable.
NOTE:
Carefully pry the gearshift cables from the transaxle bracket.
