Removal and Installation

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Index-mark the driveshaft flange and the pinion flange.

NOTE: Support the driveshaft.

Remove and discard the 4 driveshaft-to-drive pinion bolts and position aside the rear driveshaft.
- To install, tighten the 4 new bolts to 40 Nm (30 lb-ft).
Remove the rear halfshafts. For additional information, refer to REAR DRIVE HALFSHAFTS article.
Position a suitable transmission hydraulic jack to the axle housing. Securely strap the jack to the housing.

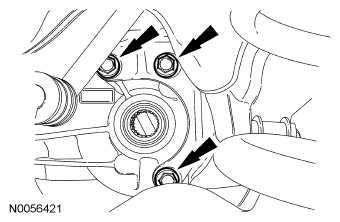

Fig 1: Positioning Transmission Hydraulic Jack To Axle Housing
Courtesy of FORD MOTOR CO.
Disconnect the active torque coupling electrical connector.

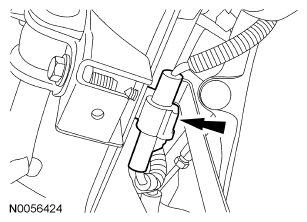

Fig 2: Locating Active Torque Coupling Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 4 differential housing-to-front insulator bracket bolts.
- To install, tighten to 90 Nm (66 lb-ft).
Fig 3: Locating Differential Housing-To-Front Insulator Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove and discard the LH front insulator bracket-to-subframe bolt and rotate the bracket.
- To install, tighten the new bolt to 90 Nm (66 lb-ft).
Remove and discard the RH front insulator bracket-to-subframe bolt and the bracket.
- To install, tighten the new bolt to 90 Nm (66 lb-ft).
Remove the 3 LH side insulator bracket-to-rear axle differential bolts.
- To install, tighten to 90 Nm (66 lb-ft).
Fig 4: Locating LH Side Insulator Bracket-To-Rear Axle Differential Bolts
Courtesy of FORD MOTOR CO.
Lower the rear axle assembly.
To install, reverse the removal procedure.
