Wheel Speed Sensor Ring - Rear: Notes

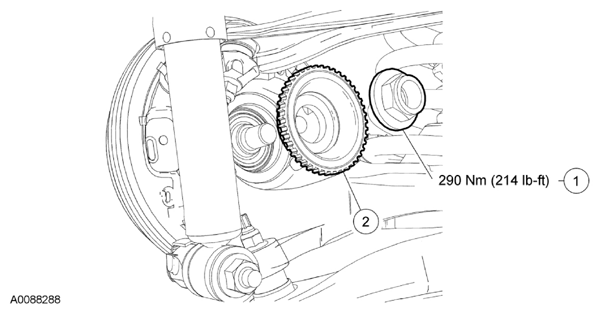

Fig 1: Rear Wheel Hub Nut And Sensor Ring With Torque Specifications
G07938125Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705967 Rear wheel hub nut
2 2C1869 Sensor ring
