Selector Lever: Removal

All vehicles

1. Place the selector lever in the D position.
   Fig 1: Locating Selector Lever In D Position

   Courtesy of FORD MOTOR CO.
2. Gently pry up to remove the upper selector lever trim ring.
   Fig 2: Locating Upper Selector Lever Trim Ring

   Courtesy of FORD MOTOR CO.
3. Lift the center console lid and remove the center console compartment tray.
   Fig 3: Locating Center Console Compartment Tray

   Courtesy of FORD MOTOR CO.
4. Remove the top finish panel.
   Fig 4: Locating Top Finish Panel

   Courtesy of FORD MOTOR CO.
5. If necessary, remove the selector level bezel light socket from the side of the selector level bezel and remove the light bulb.
6. Remove the selector lever cable from the selector lever assembly.
   1. Disconnect the selector lever cable end from the selector lever.
   2. Remove the selector lever cable from the bracket.

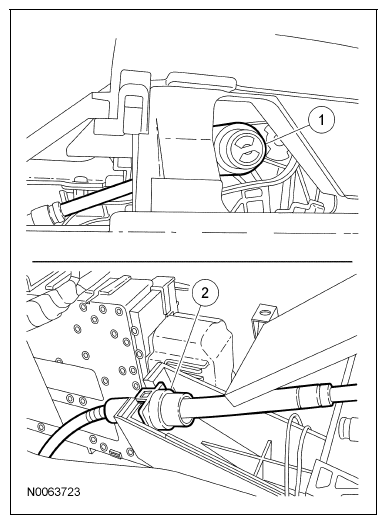

      Fig 5: Identifying Selector Lever Cable And Cable End

      Courtesy of FORD MOTOR CO.
7. Disconnect the wiring harness retainers from the selector lever.
   Fig 6: Locating Wiring Harness Retainers

   Courtesy of FORD MOTOR CO.
8. Disconnect the electrical connectors from the selector lever.
   1. Disconnect the selector lever electrical connector.
   2. Remove the vehicle harness connector from the selector lever.

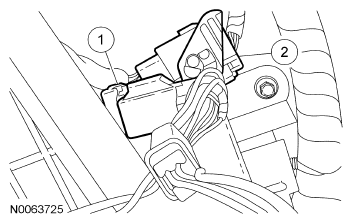

      Fig 7: Identifying Selector Lever Electrical And Vehicle Harness Connectors

      Courtesy of FORD MOTOR CO.

   All-Wheel Drive (AWD) vehicles

9. Pull the All-Wheel Drive (AWD) module straight back and remove it from the back of the selector lever.
   Fig 8: Locating All-Wheel Drive (AWD) Module

   Courtesy of FORD MOTOR CO.

   All vehicles

10. Remove the 2 screws from the center console.
    Fig 9: Locating Center Console Screws

    Courtesy of FORD MOTOR CO.
11. Remove the 4 bolts and remove the selector lever assembly.
    Fig 10: Locating Selector Lever Assembly Bolts

    Courtesy of FORD MOTOR CO.
