Transaxle Support Insulator - Lower, Rear: Notes

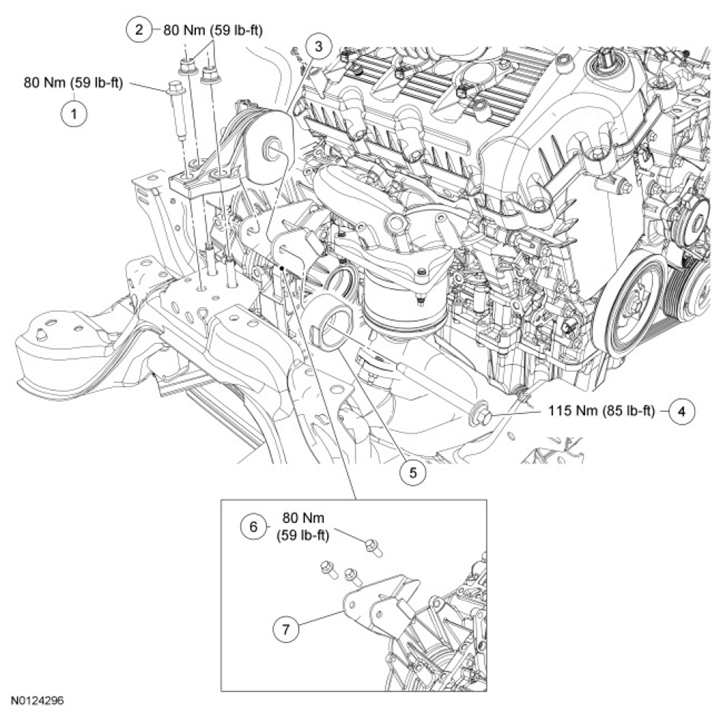

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - Lower, Rear

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500743	Lower support insulator bolt
2	N807144	Lower support insulator nut (2 required)
3	6068	Lower support insulator
4	W710173	Lower support insulator through bolt
5	5G209	Mass damper (All-Wheel Drive (AWD) only)
6	W500042	Lower support insulator bracket bolt (3 required)
7	6A023	Lower support insulator bracket
