Transaxle Case Bushing: Removal

Remove the front LH halfshaft seal. For additional information, refer to HALFSHAFT SEAL - LH .

NOTE: Leave the drain plug out after the transmission fluid drains. The drain plug will need to remain out to clean any debris from the damaged or worn bushing.

Fig 1: Locating Transmission Fluid Drain Plug

Courtesy of FORD MOTOR CO.

Remove the drain plug and drain the transmission fluid.
Install the Step Plate in the differential carrier.

Fig 2: Identifying Step Plate In Differential Carrier
Courtesy of FORD MOTOR CO.
Using the Transmission Extension Housing Bushing Remover remove the LH halfshaft bushing.

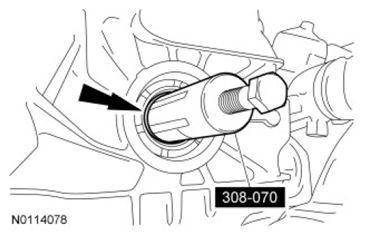

Fig 3: Removing LH Halfshaft Bushing Using Transmission Extension Housing Bushing Remover
Courtesy of FORD MOTOR CO.
Remove the Step Plate from the differential carrier.

Fig 4: Identifying Step Plate In Differential Carrier
Courtesy of FORD MOTOR CO.
