In-Vehicle Repair: Solenoids: Installation

  1. Inspect the solenoid(s) for damage.
    Fig 1: Inspecting Solenoid
    G06097103Courtesy of FORD MOTOR CO.
  2. If a new solenoid is not being installed, install the solenoid(s) into the bore from which it was removed.
  3. If installing a new Variable Force Solenoid (VFS), determine the base part number of the solenoid(s). The Torque Converter Clutch (TCC) solenoid, Shift Solenoid A (SSA) and Shift Solenoid C (SSC) are all normally low pressure solenoids. The Line Pressure Control (LPC) solenoid, Shift Solenoid B (SSB) and Shift Solenoid D (SSD) are all normally high pressure solenoids. Shift Solenoid E (SSE) is not a VFS; it is an ON/OFF solenoid.
    Fig 2: Identifying Low And High Pressure Solenoids
    G06097104Courtesy of FORD MOTOR CO.
    Item Part Number Description
    1 7G136 SSA (normally low)
    2 7G383 SSB (normally high)
    3 7G136 SSC (normally low)
    4 7G383 SSD (normally high)
    5 7G484 SSE (normally closed [OFF])
    6 7G136 TCC solenoid (normally low)
    7 7G383 LPC solenoid (normally high)
  4. If installing a new LPC solenoid, SSB or SSD, note the color of the electrical terminal area of the solenoid. The color will be blue or green and the solenoid can only be replaced with the same color solenoid. If a new solenoid with that color is not available, install a new solenoid body, refer to SOLENOID BODY ASSEMBLY .
    Fig 3: Locating Color Of Electrical Terminal Area Of Solenoid
    G06376795Courtesy of FORD MOTOR CO.
  5. Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is the third digit on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Use the following table to determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid. Install the solenoid in the solenoid body.
    Solenoid Band Number Part Number Suffix
    1 B
    2 C
    3 D
    4 E
    5 F
    Fig 4: Locating Solenoid Band Number
    G06096814Courtesy of FORD MOTOR CO.
  6. Install the solenoid retaining pin(s).
    Fig 5: Installing Solenoid Retaining Pin
    G06097102Courtesy of FORD MOTOR CO.
  7. Install the Valve Body Alignment Pins in the solenoid body to align the lead frame for installation.
    Fig 6: Identifying Valve Body Alignment Pins In Solenoid Body
    G06097075Courtesy of FORD MOTOR CO.
  8. Position the leadframe on the Valve Body Alignment Pins and carefully install the leadframe by pushing straight down into the solenoids.
  9. Remove the Valve Body Alignment Pins.
  10. Install the 5 leadframe screws.
    Fig 7: Locating Leadframe Screws
    G06097077Courtesy of FORD MOTOR CO.
  11. Connect the OSS sensor electrical connector.
    Fig 8: Locating Output Shaft Speed (OSS) Sensor Electrical Connector
    G06097072Courtesy of FORD MOTOR CO.
  12. Connect the TR sensor electrical connector.
    Fig 9: Locating TR Sensor Electrical Connector
    G06097012Courtesy of FORD MOTOR CO.
  13. Install the main control cover grommet.
    Fig 10: Locating Main Control Cover Grommet
    G06097011Courtesy of FORD MOTOR CO.
  14. Clean the main control cover sealing surface and inspect for damage.
    Fig 11: Locating Main Control Cover Sealing Surface
    G06096992Courtesy of FORD MOTOR CO.
  15. Apply silicone to the main control sealing surface of the transaxle case.
    Fig 12: Applying Silicone To Main Control Sealing Surface Of Transaxle Case
    G06096993Courtesy of FORD MOTOR CO.
  16. Position the main control cover in place.
    Fig 13: Locating Main Control Cover
    G06096994Courtesy of FORD MOTOR CO.
    17. NOTE: Inspect the main control cover grommet to make sure that the seals is on the inside of the main control cover. Transmission fluid leak will occur.
    NOTE: Install the stud bolts in the locations noted during disassembly.

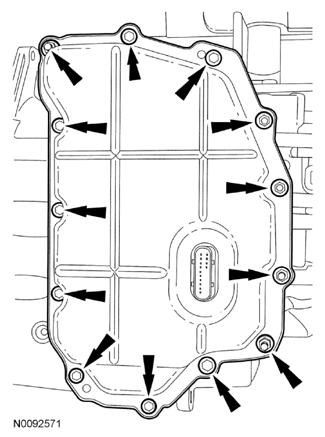

  17. Tighten the 8 main control cover bolts and 5 stud bolts.
    • Tighten to 12 Nm (106 lb-in).
      Fig 14: Locating Main Control Cover Bolts And Stud Bolts
      G07940713Courtesy of FORD MOTOR CO.
  18. Position the transmission fluid cooler tube bracket and transmission fluid cooler tube assembly in place and install the 2 nuts.
    • Tighten to 9 Nm (80 lb-in).
      Fig 15: Locating Transmission Fluid Cooler Tube Bracket And Nuts
      G06376678Courtesy of FORD MOTOR CO.
  19. Connect the transaxle vehicle harness electrical connector.
    Fig 16: Locating Transaxle Vehicle Harness Electrical Connector
    G06096997Courtesy of FORD MOTOR CO.
  20. Connect the transaxle electrical wiring harness retainers to the transmission fluid pan stud bolts.
    Fig 17: Locating Transaxle Electrical Wiring Harness Retainers
    G06096990Courtesy of FORD MOTOR CO.
  21. Install the LH splash shield and the retainers.
    Fig 18: Locating Retainers And Splash Shields
    G06096985Courtesy of FORD MOTOR CO.
  22. Fill the transaxle with clean transmission fluid.
  23. Using the scan tool with the engine running, check and make sure that the transmission is at normal operating temperature 85-93°C (185-200°F). Check and adjust the transmission fluid level and check for any leaks. If transmission fluid is needed, add transmission fluid in increments of 0.24L (0.5 pt) until the correct level is achieved.
