Front Impact Severity Sensor: Notes

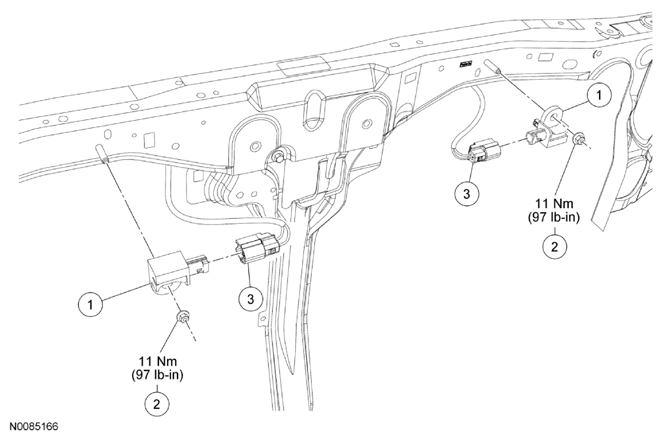

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications
G07943996Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14B004 Front impact severity sensors (2 required)
2 W700101 Front impact severity sensor nuts (2 required)
3 - Front impact severity sensor electrical connectors (part of 14290) (2 required)
