Removal And Installation: Clockspring: Notes

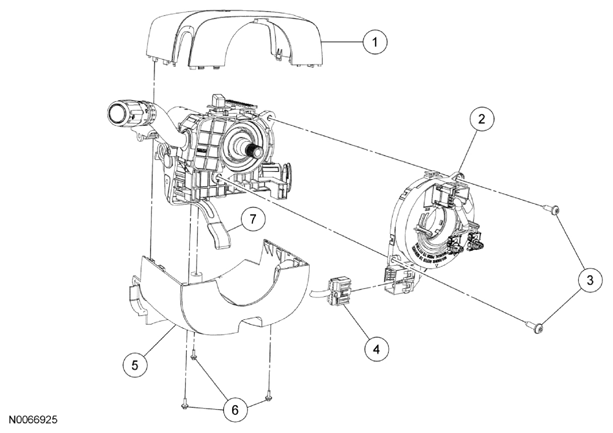

Fig 1: Identifying Clockspring Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3530	Upper steering column shroud
2	14A664	Clockspring
3	W506942	Clockspring screws (2 required)
4	-	Electrical connector (part of 14401)
5	3K512	Lower steering column shroud
6	-	Lower steering column shroud screws (part of 3K512) (3 required)
7	-	Steering column tilt lock/unlock handle
