Receiver Drier - Hybrid: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

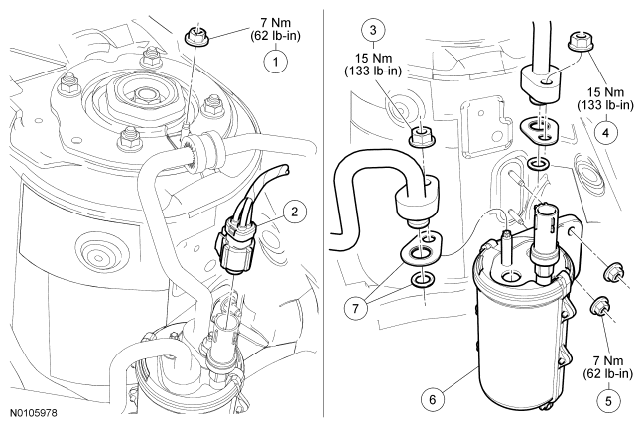

| Item | Part Number | Description |
|---|---|---|
| 1 | W707137 | Evaporator inlet line bracket nut |
| 2 | - | A/C pressure transducer electrical connector (part of 14290) |
| 3 | W520413 | Receiver/drier inlet fitting nut |
| 4 | W520413 | Receiver/drier outlet fitting nut |
| 5 | W707137 | Receiver/drier nut (2 required) |
| 6 | 19959 | Receiver/drier |
| 7 | 19B596 | O-ring seal and gasket seal kit (2 required) |
