Compressor to Condenser Discharge Line - Hybrid: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Electric A/C Compressor Oil YN-32 |
- |

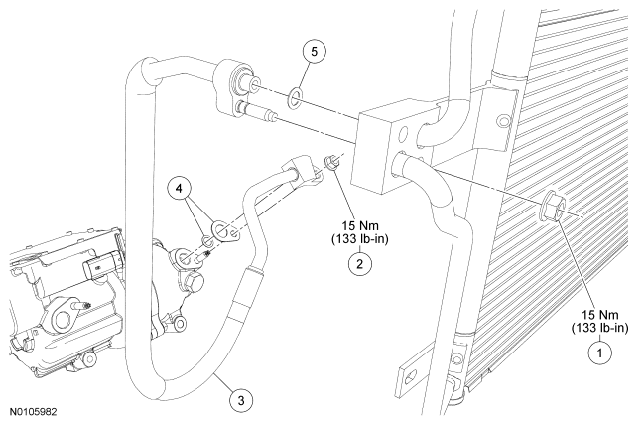

Fig 1: Compressor To Condenser Discharge Line Replacement Components With Torque Specifications -- Hybrid
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C condenser inlet fitting nut |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | 19972 | Compressor-to-condenser discharge line |
| 4 | 19B596 | O-ring seal and gasket seal kit |
| 5 | 19E889 | O-ring seal |
