2.5L Hybrid

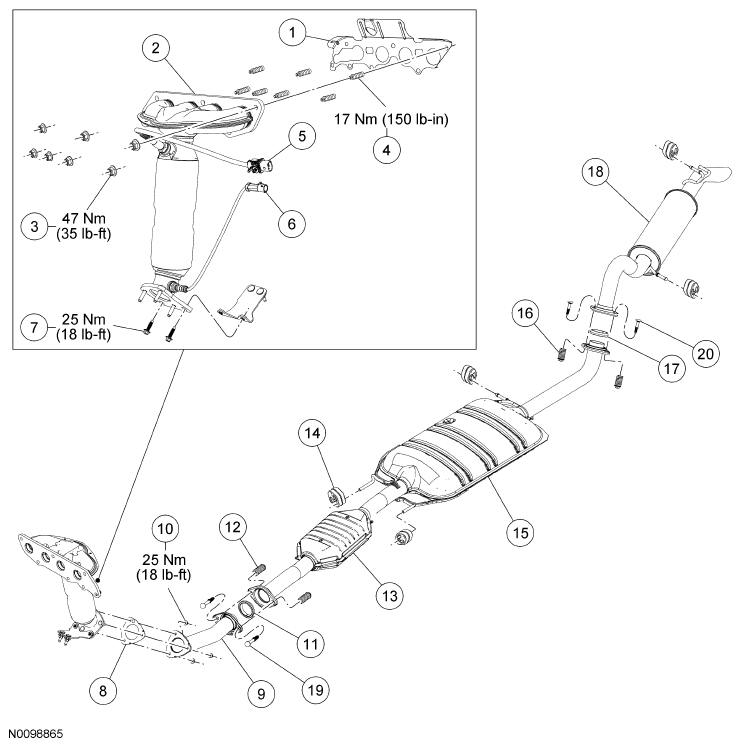

Fig 1: Exploded View Of Exhaust System With Torque Specifications - 2.5L Hybrid
G06098418Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9448 Catalytic converter manifold gasket
2 5G241 Catalytic converter
3 W708176 Catalytic converter manifold nut (7 required)
4 W704474 Catalytic converter manifold stud (7 required)
5 14A464 Heated Oxygen Sensor (HO2S) electrical connector
6 14A464 Catalyst Monitor Sensor (CMS) electrical connector
7 W712021 Exhaust downpipe bracket bolt (2 required)
8 9451 Gasket
9 5E256 Exhaust intermediate pipe
10 W520413 Exhaust intermediate pipe nut (3 required)
11 5E241 Gasket
12 5G215 Catalytic converter-to-intermediate pipe spring nut (2 required)
13 5E211 Underbody catalytic converter
14 5A262 Exhaust hanger (5 required)
15 5230 Muffler
16 5G215 Resonator-to-muffler spring nut (2 required)
17 5E241 Gasket
18 5212 Resonator assembly
19 W790170 Exhaust intermediate pipe flange stud (2 required)
20 W790190 Resonator flange stud (2 required)
  1. For additional information, refer to the appropriate procedures.
