Console - Floor: Notes

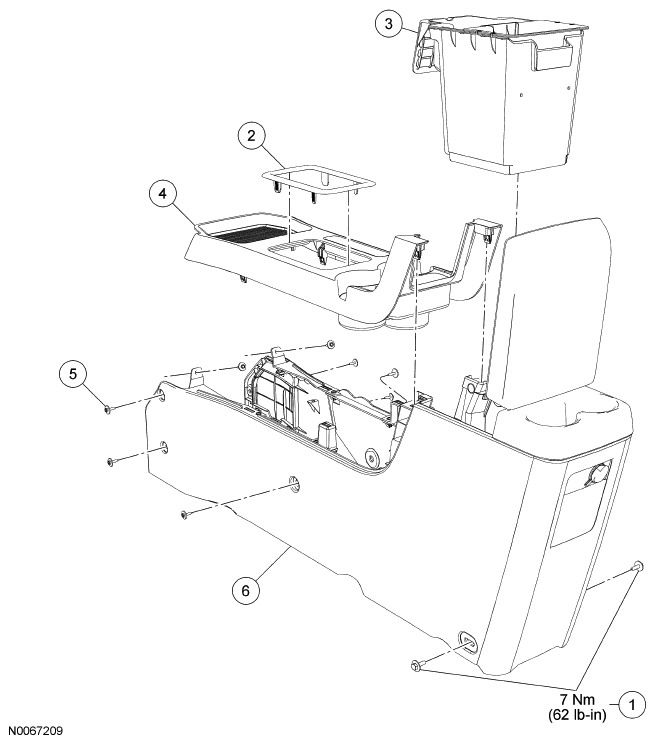

Fig 1: Exploded View Of Floor Console With Torque Specifications
G06099804Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707257 Floor console rear bolts
2 7E391 Selector lever trim ring
3 - Floor console storage bin
4 045A76 Floor console finish panel
5 W705796 Floor console screw (8 required)
6 045A36 Floor console
