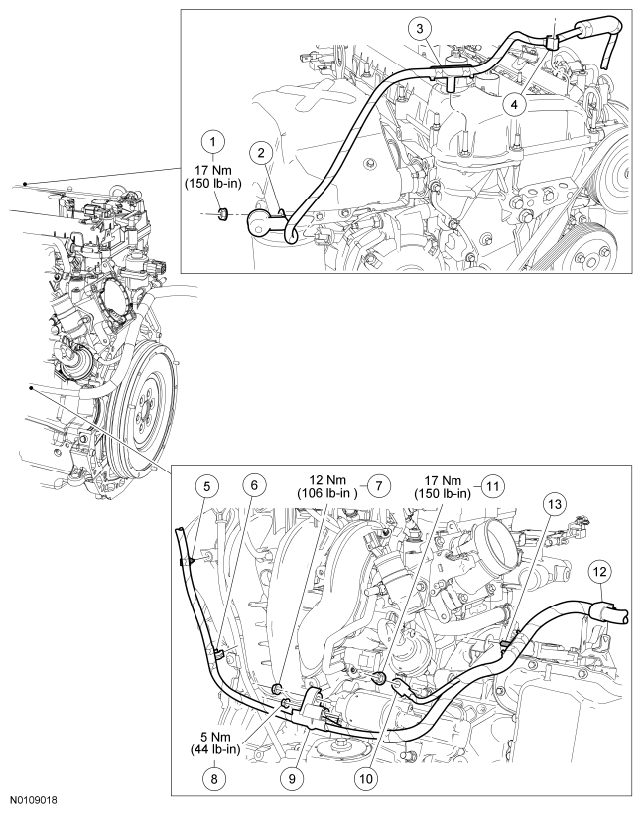

| 1 |
W711953 |
Generator B+ terminal nut |
| 2 |
- |
Generator B+ terminal (part of 14A280) |
| 3 |
14A163 |
Clip retainer |
| 4 |
14A169 |
Stud retainer |
| 5 |
13A506 |
Pin-type retainer |
| 6 |
14A163 |
Clip retainer |
| 7 |
W706414 |
Starter motor positive cable nut |
| 8 |
W704141 |
Starter solenoid wire nut |
| 9 |
14488 |
Starter solenoid terminal cover |
| 10 |
- |
Battery ground cable terminal (part of 14A280) |
| 11 |
N706414 |
Battery ground cable nut |
| 12 |
- |
Retainer (part of 14A280) |
| 13 |
13A506 |
Pin-type retainer |
| 14 |

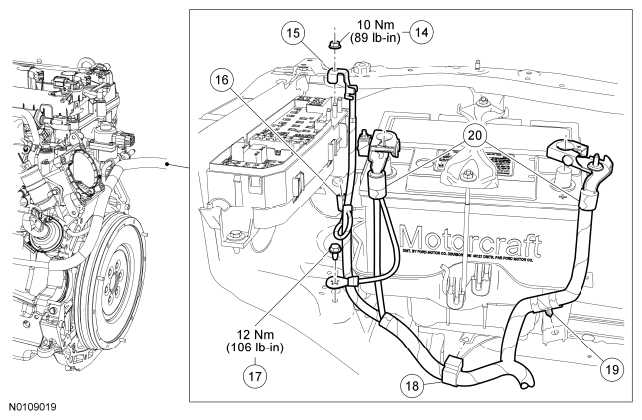

W520412 |
Battery Junction Box (BJB) terminal nut |
| 15 |
- |
BJB terminal (part of 14A290) |
| 16 |
- |
BJB electrical connector (part of 14A290) |
| 17 |
N712583 |
Body ground terminal bolt |
| 18 |
14A163 |
Clip retainer |
| 19 |
- |
Pin-type retainer (part of 14A280) |
| 20 |
14A280 |
Battery cables |
