Hydraulic Control Unit (HCU) - Hybrid: Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

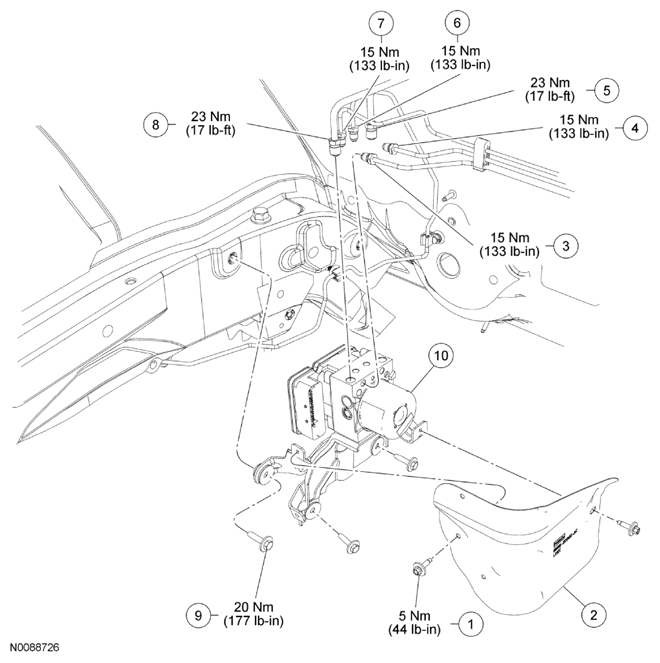

Fig 1: Hydraulic Control Unit Components With Torque Specifications - Hybrid

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712119	Hydraulic Control Unit (HCU) heat shield bolt (2 required)
2	2C314	HCU heat shield
3	2C058	LR brake tube fitting (part of 2C360)
4	-	RR brake tube fitting (part of 2C360)
5	-	Master cylinder secondary brake tube fitting (part of 2C326)
6	-	RF brake tube fitting (part of 2263)
7	-	LF brake tube fitting (part of 2C360)
8	-	Master cylinder primary brake tube fitting (part of 2C326)
9	W712119	HCU bracket-to-frame bolt (3 required)
10	2C215	HCU
