Bumper - Exploded View, Front

NOTE: It is necessary to cut or grind off the barbed tabs to remove the front bumper moulding, to prevent damage to the front bumper cover.

NOTE: The front bumper cover mounting bracket pin-type retainers (item 8) are factory installed for assembly purposes and are not released for service. The pin-type retainers must be broken and discarded during front bumper cover removal and are not needed for reassembly.

NOTE: Escape shown in illustration, all other vehicles similar.

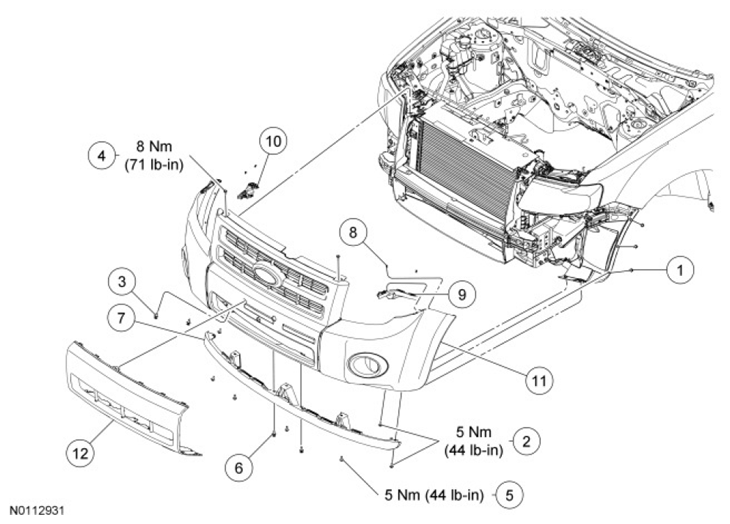

Fig 1: Exploded View Of Front Bumper With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706713	Fender splash shield scrivet (6 required)
2	W707257	Fender splash shield-to-air deflector bolt (4 required)
3	W706713	Front bumper cover center scrivet (2 required)
4	W710794	Front bumper cover upper bolt (2 required)
5	W503924	Front bumper cover air deflector bolt (3 required)
6	W711035	Front bumper cover air deflector pushpin (2 required)
7	17626	Front bumper cover air deflector
8	-	Front bumper cover mounting bracket pin-type retainer (4)
9	13A005	Front bumper cover mounting bracket
10	13A004	Front bumper cover mounting bracket
11	17750	Front bumper cover
12	8419	Front bumper moulding

Fig 2: Exploded View Of Front Bumper With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
13	W701259	Radiator opening cover pin-type retainer (2 required)
14	8C299	Radiator opening cover
15	W707144	Front bumper nut (4 required)
16	17859	Front bumper

Fig 3: Exploded View Of Front Bumper With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
17	714400	LH front splash shield pushpins
18	W707257	LH front splash shield bolt (3 required)
19	16A574	LH front splash shield
20	714400	RH front splash shield pushpin
21	W707257	RH front splash shield bolt (3 required)
22	16A573	RH front splash shield

For additional information, refer to the appropriate procedures.
