Liftgate Handle, Lock and Latch - Exploded View

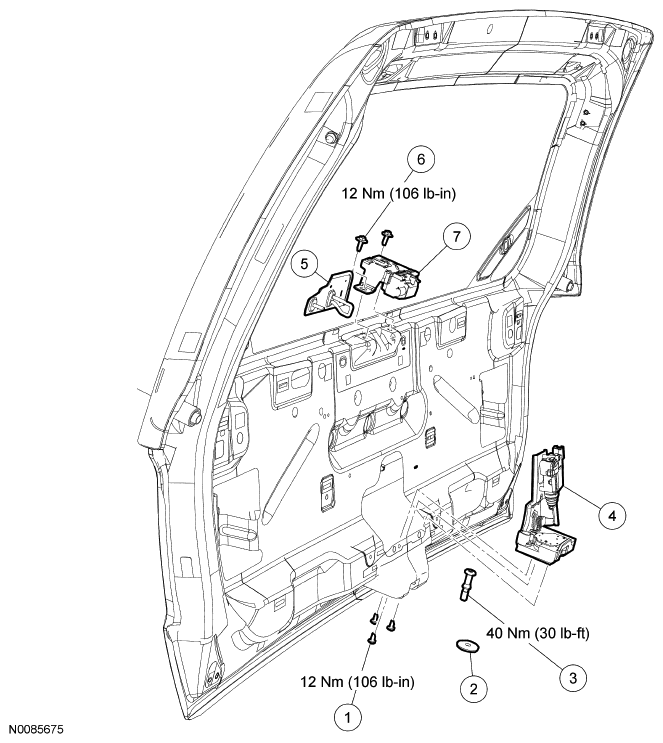

Fig 1: Exploded View Of Liftgate Handle, Lock And Latch Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705830-S435	Liftgate latch bolts (3 required)
2	7843252	Liftgate latch striker plate
3	7843252	Liftgate latch striker
4	7843150	Liftgate latch
5	78440A58	Liftgate window latch striker
6	W707257-S439	Liftgate window latch bolts (2 required)
7	7840860	Liftgate window latch

1. For additional information, refer to the appropriate procedures.
