Hood Latch and Components - Exploded View

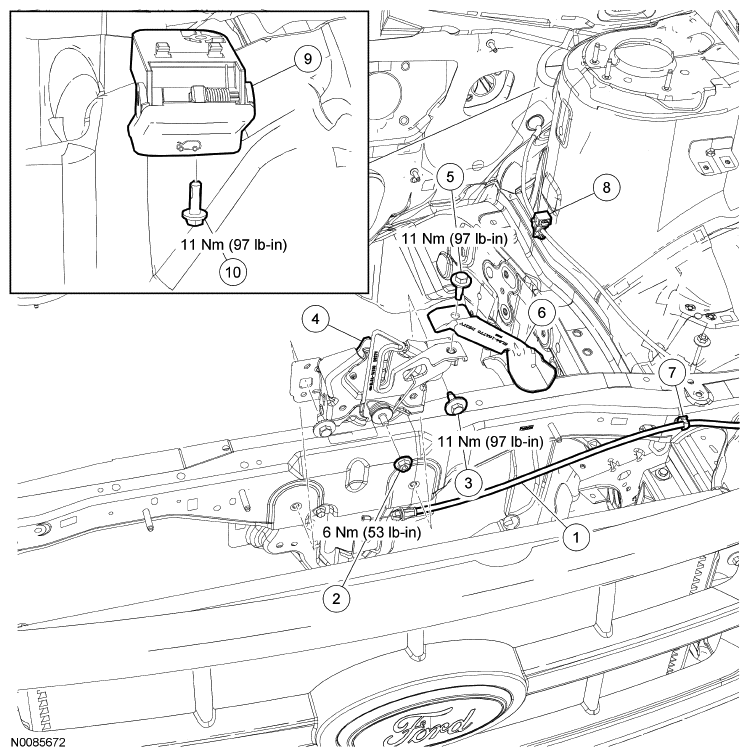

Fig 1: Exploded View Of Hood Latch Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	16916	Hood latch release handle and cable assembly
2	W707137-S441	Hood latch nut
3	W705162-S427	Hood latch bolts (2 required)
4	16700	Hood latch
5	W505423-S307	Hood latch release lever bolt
6	16A770	Hood latch release lever
7	386132-S	Hood latch release cable clip
8	W710094-S300	Hood latch release cable clip
9	-	Hood latch release handle (part of 16916)
10	W505424-S438	Hood latch release handle bolt

1. For additional information, refer to the appropriate procedures.
