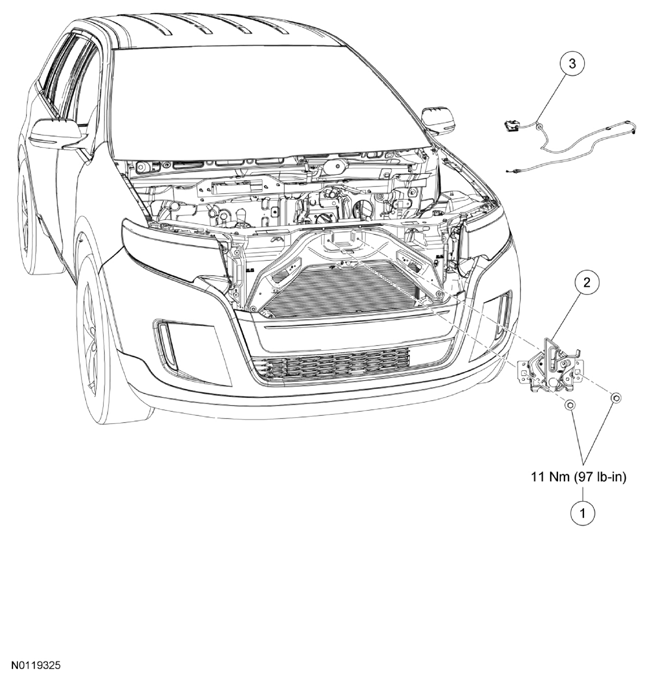

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W715422 |
Hood latch bolts (2 required) |
| 2 |
16700 |
Hood latch |
| 3 |
16916 |
Hood latch release handle and cable |
- For additional information, refer to the appropriate procedures in this service information.
