Latch Lubrication

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
Multi-Purpose Grease Motorcraft® XL-5 (aerosol) and/or CRC® SL3151	ESB-M1C93-B

Open the door.
Using a screwdriver, fully close the latch (2 clicks).

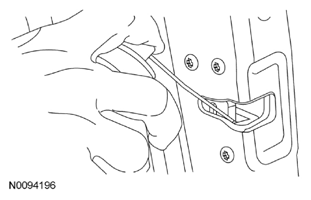

Fig 1: Checking Latch Operation
Courtesy of FORD MOTOR CO.
Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.

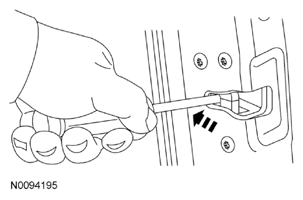

Fig 2: Spraying Multi-Purpose Grease Into Opening On Door Latch
Courtesy of FORD MOTOR CO.
Open the latch using either the interior or exterior door handle.
Open and close the door several times to circulate the lubricant inside the latch.
Wipe off any excess grease.
