OEM Ground Distribution: Grounds: G206

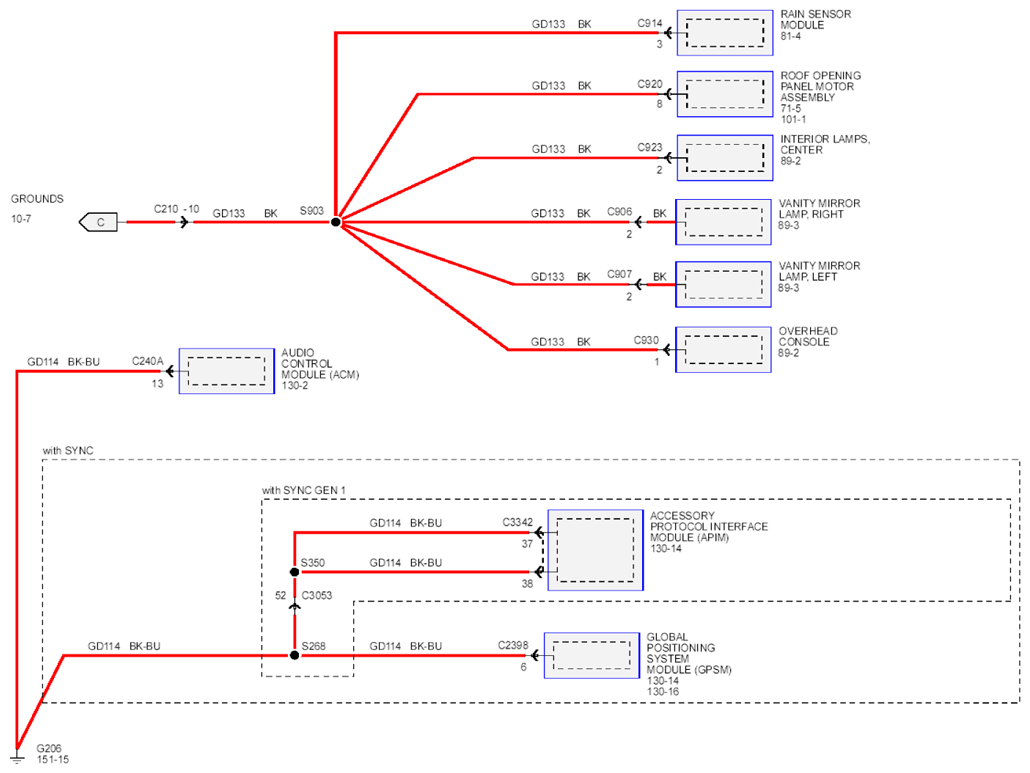

Fig 1: Grounds Circuit Diagram (G206)

G07898550

Courtesy of FORD MOTOR CO.
