Power Transfer Unit (PTU)

Fig 1: Exploded View Of Power Transfer Unit

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500741	PTU-to-transaxle bolt (5 required)
2	7086	Compression seal
3	6068	Roll restrictor assembly
4	W711843	Roll restrictor through bolt
5	W706674	Roll restrictor through bolt
6	W500724	Power Transfer Unit (PTU)-to-support bracket bolt (5 required)
7	W700101	Roll restrictor shield nut (2 required)
8	6C038	Roll restrictor shield
9	7A444	PTU support bracket
10	7251	PTU

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .

NOTE: Index-mark the driveshaft for installation.

Fig 2: Locating Driveshaft Bolts

Courtesy of FORD MOTOR CO.

Remove the 4 bolts and support the driveshaft with a length of mechanic's wire.
Remove the exhaust flexible pipe and the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM .
Remove the 2 roll restrictor shield nuts and the roll restrictor shield.

Fig 3: Locating Roll Restrictor Shield Nuts
Courtesy of FORD MOTOR CO.
Remove the 2 roll restrictor through bolts and the roll restrictor.

Fig 4: Locating Roll Restrictor Through Bolts
Courtesy of FORD MOTOR CO.
Remove the 5 PTU support bracket bolts and the PTU support bracket.

Fig 5: Locating PTU Support Bracket Bolts
Courtesy of FORD MOTOR CO.
Using a long extension, loosen but do not remove the 2 LH side PTU-to-transaxle bolts.

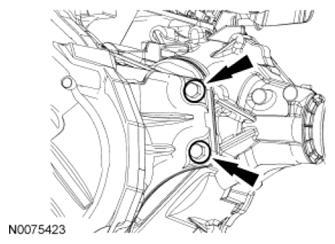

Fig 6: Locating LH Side PTU-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Remove the 3 RH side PTU-to-transaxle bolts and the 2 LH side PTU-to-transaxle bolts previously loosened.

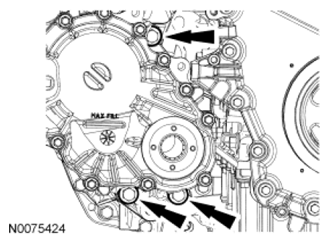

Fig 7: Locating RH Side PTU-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Separate the PTU from the transaxle and remove it from the vehicle.

NOTE: A new compression seal must be installed whenever the PTU is removed from the vehicle.

Fig 8: Locating Compression Seal

Courtesy of FORD MOTOR CO.
