Neutral Position: Notes

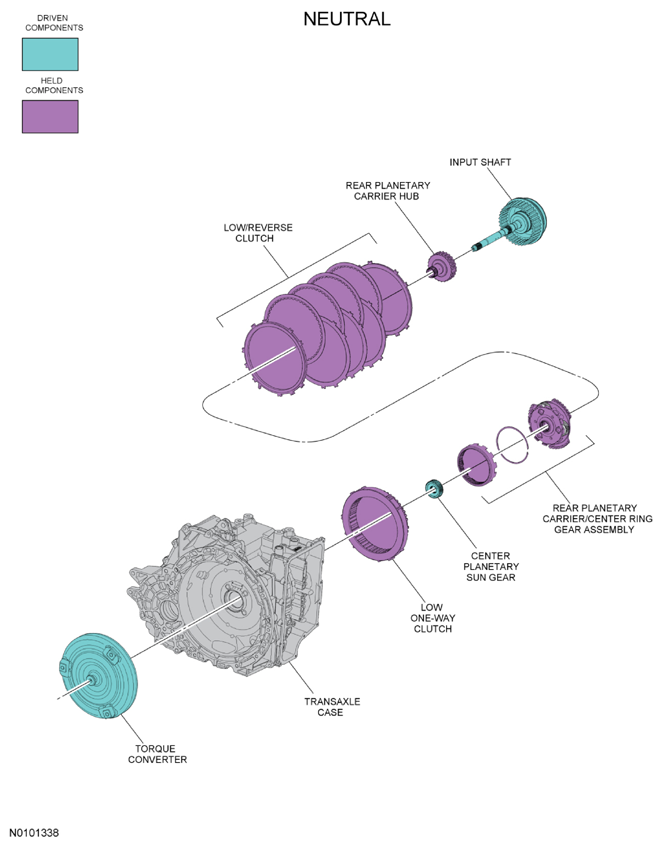

Fig 1: Exploded View Of Transaxle (Neutral Position)

G07930944

Courtesy of FORD MOTOR CO.
