Power Steering Pump - 3.5L, 3.7L: Notes

SPECIAL TOOLS DESCRIPTION CHART

	Remover, Stretchy Belt 303-1419
	Tool, Stretchy Belt Remover/Installer 303-1252/2

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

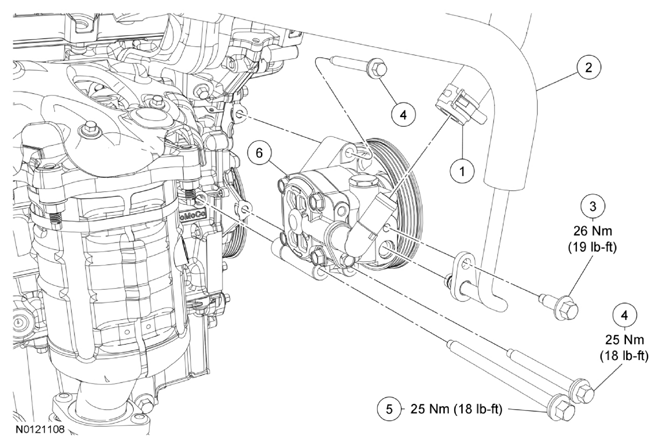

Fig 1: Exploded View Of Power Steering Pump Components With Torque Specifications - 3.5L, 3.7L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3691	Supply hose
2	3A719	Pressure line
3	W710726	Pressure line clamp plate bolt
4	W503302	Power steering pump bolt (2 required)
5	W714207	Power steering pump bolt
6	3A696	Power steering pump
