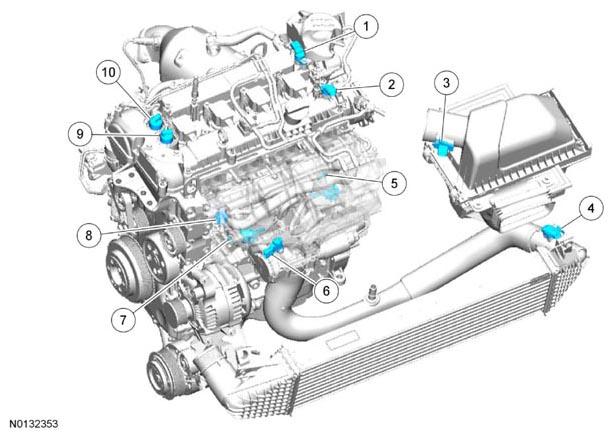

Front Engine View
| Item | Part Number | Description |
|---|---|---|
| 1 | 12K073 | Exhaust Camshaft Position (CMP) sensor |
| 2 | 12K073 | Intake Camshaft Position (CMP) sensor |
| 3 | 12B579 | Intake Air Temperature (IAT) sensor |
| 4 | 9F479 | Manifold Absolute Pressure and Temperature (MAPT) |
| 5 | 12A699 | LH Knock Sensor (KS) |
| 6 | 9F479 | Manifold Absolute Pressure (MAP) sensor |
| 7 | 9F972 | Fuel Rail Pressure (FRP) sensor |
| 8 | 12A699 | RH Knock Sensor (KS) |
| 9 | 6M280 | Intake Variable Camshaft Timing (VCT) oil control solenoid |
| 10 | 6M280 | Exhaust Variable Camshaft Timing (VCT) oil control solenoid |
