Rear Disc Brake Shield: Notes

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

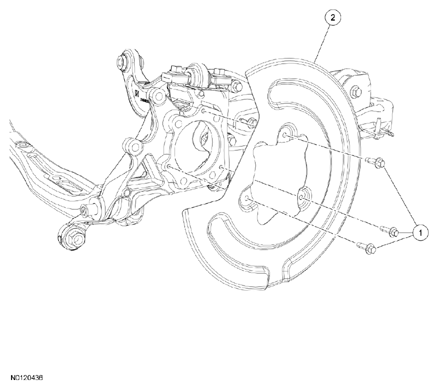

Fig 1: Identifying Brake Disc Shield Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500010	Brake disc shield bolts (3 required) (15 Nm [133 lb-in])
2	2068	Brake disc shield
