Output Shaft Speed (OSS) Sensor: Installation

  1. Install the OSS sensor and the OSS sensor bolt.
    • Tighten to 10 Nm (89 lb-in).

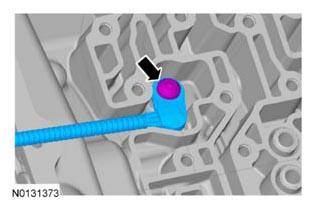

      Fig 1: Locating Output Shaft Speed Sensor Bolt
      G07932029Courtesy of FORD MOTOR CO.
  2. Install the main control. For additional information, refer to MAIN CONTROL VALVE BODY .
