Manual Climate Control System
>>
Notes
Manual Climate Control System: Notes

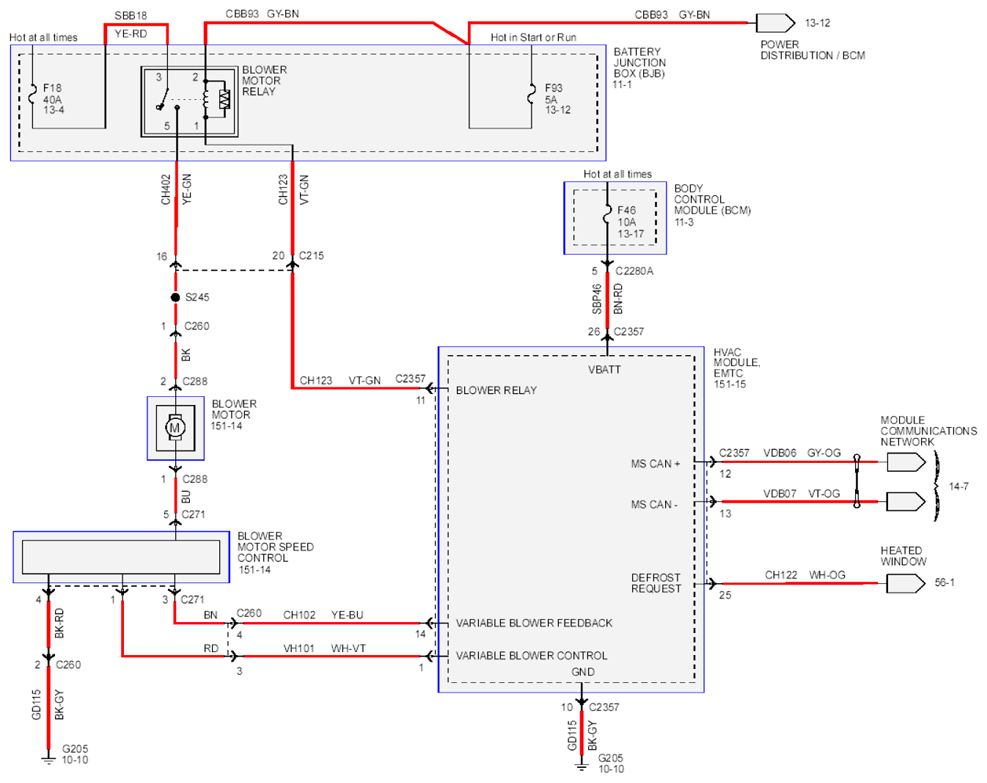

Fig 1: Manual Climate Control System Circuit Diagram (View 1 Of 6)

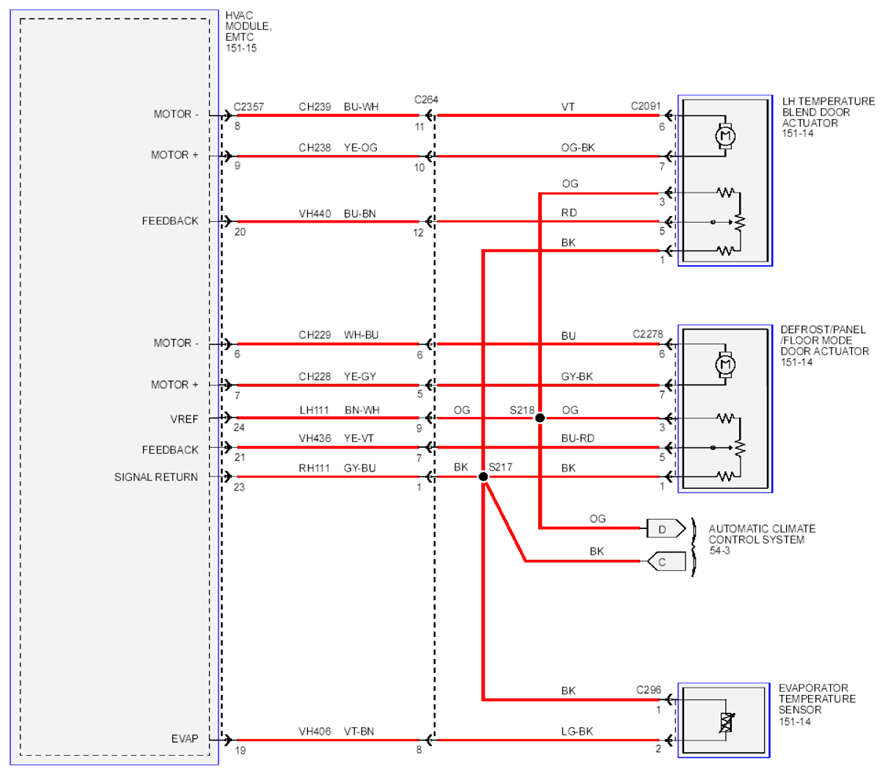

Fig 2: Manual Climate Control System Circuit Diagram (View 2 Of 6)
