Solenoid Body Leadframe: Removal

Remove the main control cover. Refer to MAIN CONTROL COVER .
Disconnect the TR sensor electrical connector.

Fig 1: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the OSS sensor electrical connector.

Fig 2: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the main control-to-cover seal.

Fig 3: Locating Main Control-To-Cover Seal
Courtesy of FORD MOTOR CO.

NOTE: Be careful not to bend or twist the leadframe or the solenoid terminals when removing the leadframe or damage can occur to the leadframe or the solenoids.

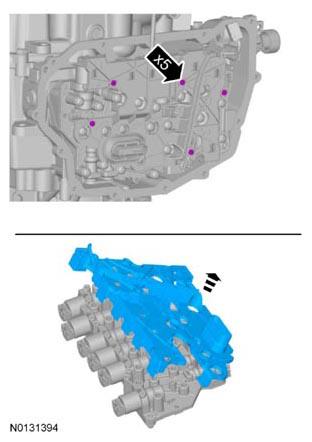

Fig 4: Locating Leadframe Screws

Courtesy of FORD MOTOR CO.

Remove the 5 leadframe screws and the leadframe from the solenoids by lifting it straight up evenly.
