Solenoid Body Leadframe: Installation

Install the Leadframe Guide Pins in the solenoid body to align the leadframe for installation.

Fig 1: Identifying Leadframe Guide Pins
Courtesy of FORD MOTOR CO.
Position the leadframe on the Leadframe Guide Pins and carefully install the leadframe by pushing straight down into the solenoids.
Remove the Leadframe Guide Pins.

Fig 2: Identifying Leadframe Guide Pins
Courtesy of FORD MOTOR CO.
Install the 5 leadframe screws.

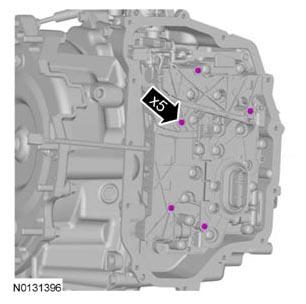

Fig 3: Locating Leadframe Screws
Courtesy of FORD MOTOR CO.
Connect the OSS sensor electrical connector.

Fig 4: Locating OSS Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

Fig 5: Locating TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control-to-cover seal.

Fig 6: Locating Main Control-To-Cover Seal
Courtesy of FORD MOTOR CO.
Install the main control cover. Refer to MAIN CONTROL COVER .
